AC1500,AC2000 F.R.L combination (Filter Regulator Lubricator Combination)

AC1500,AC2000 F.R.L combination (Filter Regulator Lubricator Combination)


1. Product Feature

1) The structure is delicate and compact, which is convenient for installation and application.

2) The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

3) The pressure loss is low and the efficiency of water separating is high.

4) The quantity of oil dripping can be directly observed through transparent check-dome.

5) In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

2. Symbol

Symbol of AC1500,AC2000,BC2000,BC3000,BC4000 F.R.L combination

3. Ordering Code

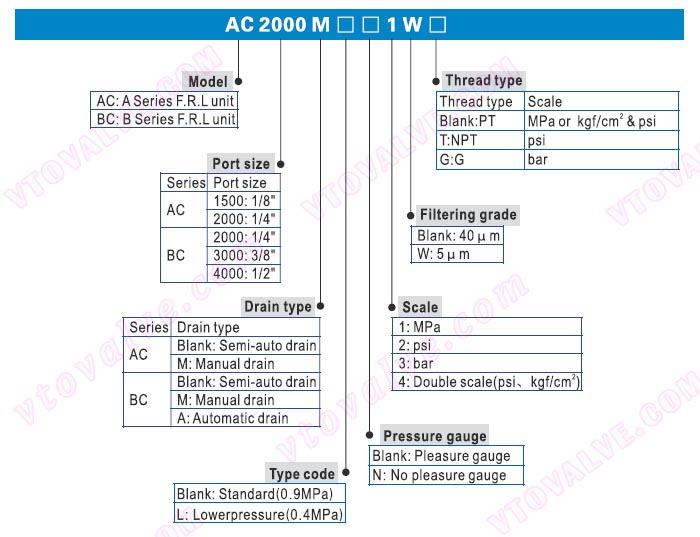

Ordering Code of AC1500,AC2000,BC2000,BC3000,BC4000 F.R.L combination

4. Specification

Specification of AC1500,AC2000,BC2000,BC3000,BC4000 F.R.L combination

5. Pressure and Feature of Flow

Pressure and Feature of Flow of AC1500,AC2000,BC2000,BC3000,BC4000 F.R.L combination

6. Selection of Drain Mode

Selection of Drain Mode of AC1500,AC2000,BC2000,BC3000,BC4000 F.R.L combination

7. Dimensions

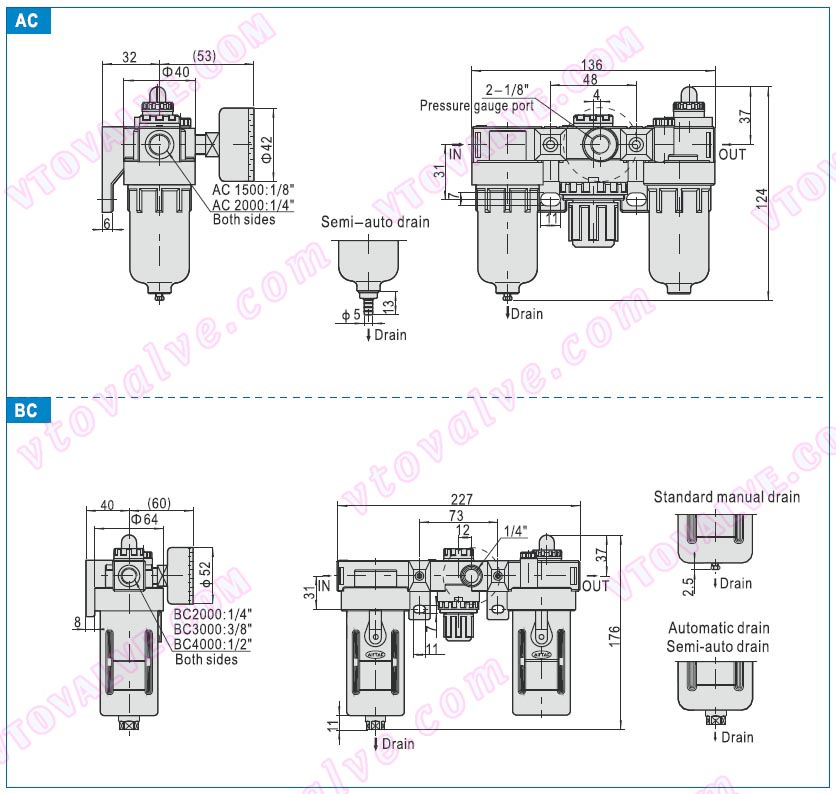

Dimensions of AC1500,AC2000,BC2000,BC3000,BC4000 F.R.L combination

8. Inner Structure

Inner Structure of AC1500,AC2000,BC2000,BC3000,BC4000 F.R.L combination
