AFC1500,AFC2000 F.R.L combination (Filter Regulator Lubricator Combination)
1. Product Feature
1) The structure is delicate and compact, which is convenient for installation and application.
2) The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3) The pressure loss is low and the efficiency of water separating is high.
4) The quantity of oil dripping can be directly observed through transparent check-dome.
5) In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).
2. Symbol

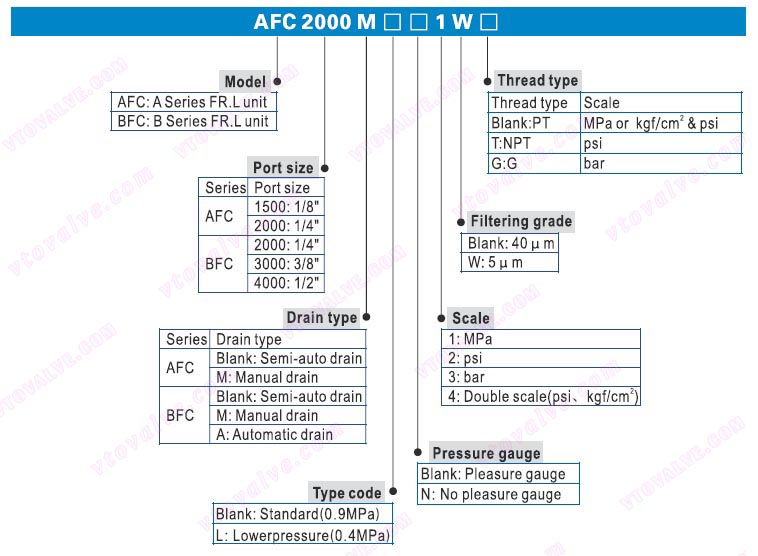

3. Ordering Code

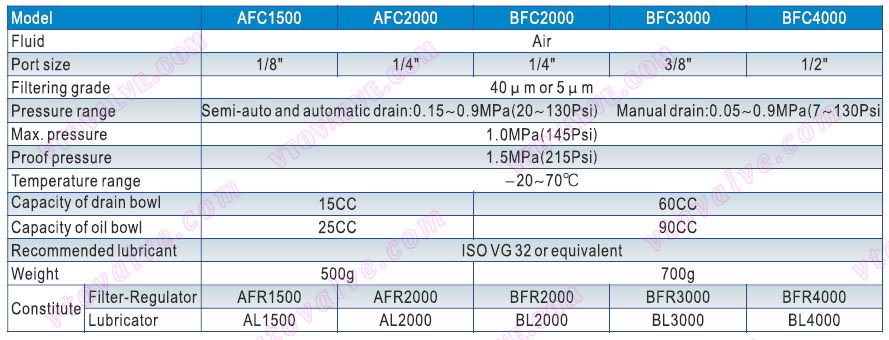

4. Specification
5. Pressure and Feature of Flow
6. Dimensions

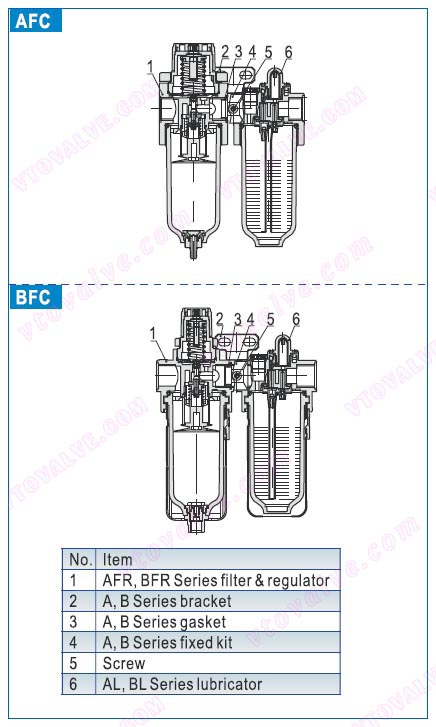

7. Inner Structure
8. Selection of Drain Mode
