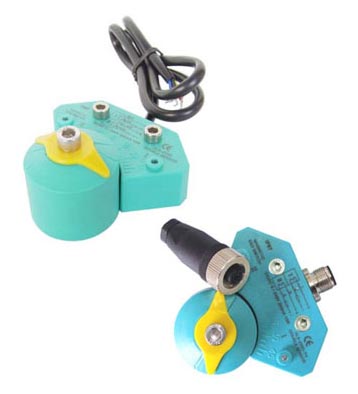

ALS200D Limit Switch Box, ALS200D Series Valve Monitor
Product Name
Limit Switch Box, Valve Monitor
Model No.
ALS200D
Overview
ALS200D Series Limit Switch Box (Valve Monitor) is a rotary position indication device, using two reed switches and two permanent magnets. They are encased in a plastic housing for protection and ease of mounting. The reed switches mounted on the top of actuator and the permanent magnets mounted on the stem of the actuator. Each switch and magnet complete a circuit when the actuator / valve closed / opened. The circuit breaks when the actuator / valve opened / closed. This device can sense machanical position (on/off) of valve for remote PLC or PC indication. The visual indicator on the top of the device can also clearly display the valve position for local detection.
Approved
Specifications And Technical Data
| Enclosure | ABS |
| Contact Form | Normally Open (NO) |
| Output Type | 2 wire |
| Switching Capacity | 1W~10W |
| Switching Voltage | 5~240 VAC/VDC |
| Switching Current | 0~300mA |
| Switching Frequency | 0~4.8KHz |
| Sensor Position | -45°/+45° ±10° |
| Operating Temp. | -40℃~+85℃ |
| Proximity Distance | 1~6mm |
| Mounting | Standard: 30x80 H:20, 30 |
| Optional: 30x130 H:20, 30 | |
| Fasteners | Stainless Steel |
| Wiring (1-red, 2-blue, 3-yellow, 4-black) |
-FL: Flying Lead (70mm) |
| -P4: M12-4P wiring connector |
Wiring Diagram (2 SPDT)

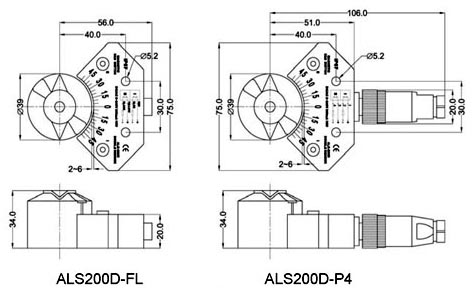

Drawing and Dimension
Mounting
