ALS200PA23 Limit Switch Box, ALS200PA23 Series Valve Monitor

ALS200PA23 Limit Switch Box, ALS200PA23 Series Valve Monitor


Product Name

Limit Switch Box, Valve Monitor

Model No.

ALS200PA23

Overview

ALS200PA23 Series Limit Switch Box (Valve Monitor) is a rotary position indication device. Armed with mechanical switch this device can senses mechanical position (on/off) valve for remote PLC or PC indication. The visual indicator on the top of the device can also clearly display the valve position for local detection.

Approved

Certificate of ALS200PA23 series limit switch box, ALS200PA23 series valve monitor

Specifications And Technical Data

Enclosure Die-casting aluminum dichromate conversion with polyester powder coating and O-ring sealed
O-rings Buna N
Environment Type 4, 4X, IP67
Area Classification Standard
Fasteners Stainless steel
Shaft Stainless steel Namur
 Conduit Entries Two 1/2" BSPP
Also available with two 1/2" NPT, M20-1.5
 Terminal Strip Contacts
 Mounting Bracket MB - 2.3: 30 x 80, 130 H : 20, 30 (Carbon steel)
 Temperature Rating -20℃ ~ 85℃
 Sensor: Two ALPS Inductive sensors (3 wire)
 Model No. PA23
 Operating Voltage 10~30VDC, <=150mA
 Operating Temp.  -25℃ ~ 85℃
 Photo Sensor of ALS200PA23 series limit switch box, ALS200PA23 series valve monitor

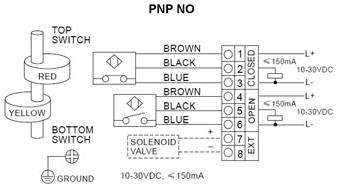

Wiring Diagram

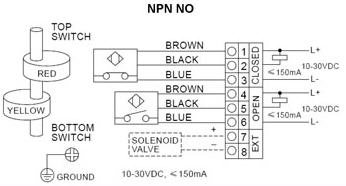

Wiring Diagram of ALS200PA23 series limit switch box, ALS200PA23 series valve monitorWiring Diagram of ALS200PA23 series limit switch box, ALS200PA23 series valve monitor

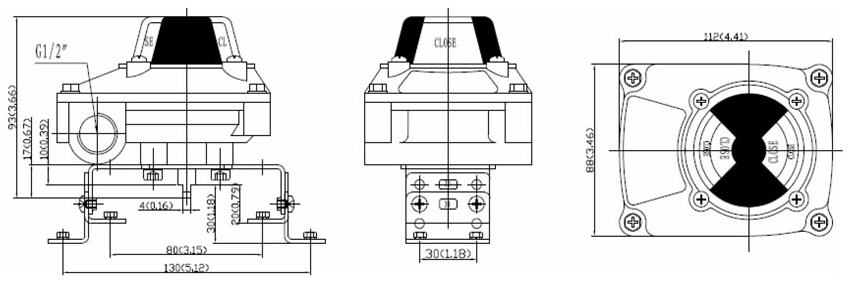

Drawing and Dimension

Drawing and Dimension of ALS200PA23 series limit switch box, ALS200PA23 series valve monitor
