ALS200QA23 Limit Switch Box, ALS200QA23 Series Valve Monitor
Product Name
Limit Switch Box, Valve Monitor
Model No.
ALS200QA23
Overview
ALS200QA23 Series Limit Switch Box (Valve Monitor) is a rotary position indication device. Armed with mechanical switch this device can senses mechanical position (on/off) valve for remote PLC or PC indication. The visual indicator on the top of the device can also clearly display the valve position for local detection.
Approved
Specifications And Technical Data
| Enclosure | Die-casting aluminum dichromate conversion with polyester powder coating and O-ring sealed |
| O-rings | Buna N |
| Environment | Type 4, 4X, IP67 |
| Area Classification | Standard |
| Fasteners | Stainless steel |
| Shaft | Stainless steel Namur |
| Conduit Entries | Two 1/2" BSPP |
| Also available with two 1/2" NPT, M20-1.5 | |
| Terminal Strip Contacts | 8 |
| Mounting Bracket | MB - 2.3: 30 x 80, 130 H : 20, 30 (Carbon steel) |
| Temperature Rating | -20℃ ~ 85℃ |
| Sensor: Inductive sensor NAMUR (2 wire) | |
| Model No. | QA23 |
| Operating Voltage | 5-240 VAC/DC, <=300mA |
| Operating Temp. | -25℃ ~ 85℃ |
Wiring Diagram

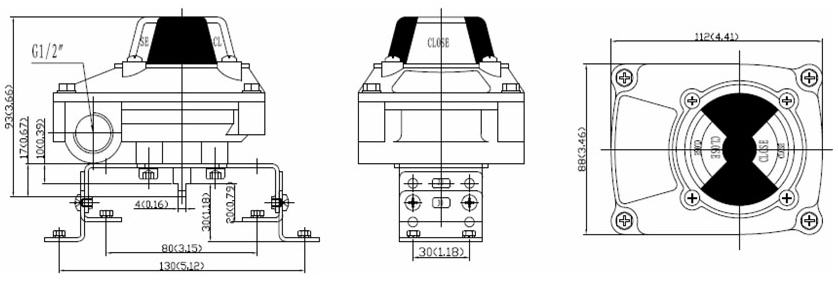

Drawing and Dimension
