Current Location: vtovalve >> Products >> Accessories >> Limit Switch >> ALS300LM2 Linear Limit Switch Box, ALS300LM2 Series Linear Valve Monitor
ALS300LM2 Linear Limit Switch Box, ALS300LM2 Series Linear Valve Monitor
Product Name
Limit Switch Box, Valve Monitor
Model No.
ALS300LM2
Overview
ALS300LM2 Limit Switch Box (Valve Monitor) is a linear position indication device. Armed with mechanical switch, this device can sense the postion of linear valve (On/Off) for remote PLC or PC indication. This visual indicator on the top of the device can also clearly display the valve position for local detection.
Approved
Specifications And Technical Data
| Enclosure | Die-casting aluminum: O-ring sealed |
| Coating | Dichromate conversion with polyester powder coating |
| O-rings | Buna N |
| Environment | Type 4, 4X, IP67 |
| Area Classification | Standard |
| Fasteners | Stainless steel |
| Shaft | Stainless steel Namur |
| Conduit Entries | Two 1/2" BSPP |
| Also available with two 1/2" NPT, M20-1.5 | |
| Terminal Strip Contacts | 8 |
| Mounting Bracket | MB - 3L (Carbon steel) |
| Linear Stroke | 10~70mm |
| Temperature Rating | -20℃ ~ 85℃ |
| Sensor: 2 SPDT CROUZET Mechanical Switches | |
| Model No. | M2 |
| Operating Voltage | Max: 15A 125~250VAC |
| Operating Temp. | -25℃ ~ 85℃ |
Wiring Diagram

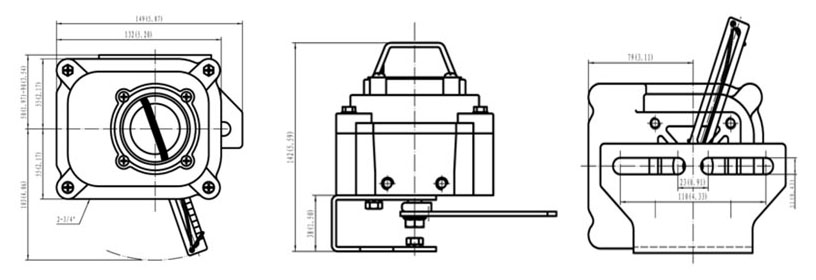

Drawing and Dimension
