ALS300M5 Limit Switch Box, ALS300M5 Series Valve Monitor
Product Name
Limit Switch Box, Valve Monitor
Model No.
ALS300M5
Overview
The ALS300M5 Limit Switch Box (Valve Monitor) is a rotary position indication device. Armed with mechanical switch (2-DPDT), this device can doubly sense valve positions (on/off) for remote PLC or PC indication and control. The visual indicator on the top of the device can also clearly display the valve position for local detection.
Approved
Specifications And Technical Data
| Enclosure | Die-casting aluminum: O-ring sealed |
| Coating | Dichromate conversion with polyester powder coating |
| O-rings | Buna N |
| Environment | Type 4, 4X, IP67 |
| Area Classification | Standard |
| Fasteners | Stainless steel |
| Shaft | Stainless steel Namur |
| Conduit Entries | Two 1/2" BSPP |
| Also available with two 1/2" NPT, M20-1.5 | |
| Terminal Strip Contacts | 14 |
| Mounting Bracket | MB - 3.4: 30 x 80, 130 H : 20, 30 (Carbon steel) |
| Temperature Rating | -20℃ ~ 85℃ |
| Sensor: 2-DPDT CROUZET Mechanical Switches | ||
| Model No. | M5 (2-DPDT) |  |
| Operating Voltage | Max: 15A 125~250VAC | |
| Operating Temp. | -25℃~+85℃ | |

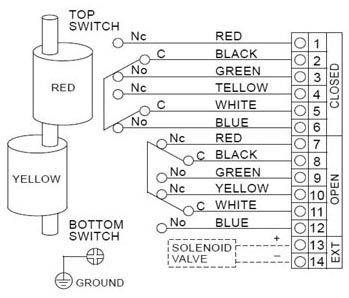

Wiring Diagram (2 DPDT)

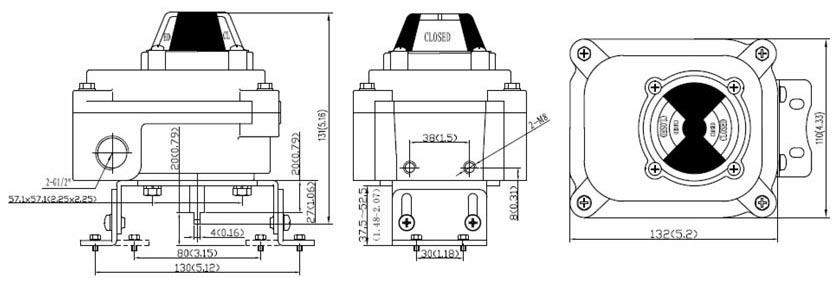

Drawing and Dimension
