ALS300PA22 Limit Switch Box, ALS300PA22 Series Valve Monitor
Product Name
Limit Switch Box, Valve Monitor
Model No.
ALS300PA22
Overview
The ALS300PA22 Limit Switch Box (Valve Monitor) is a rotary position indication device. Armed with inductive sensors, this device can sense valve positions (on/off) for remote PLC or PC indication. The visual indicator on the top of the device can also clearly display the valve position for local detection.
Approved
Specifications And Technical Data
| Enclosure | Die-casting aluminum: O-ring sealed |
| Coating | Dichromate conversion with polyester powder coating |
| O-rings | Buna N |
| Environment | Type 4, 4X, IP67 |
| Fasteners | Stainless steel |
| Shaft | Stainless steel Namur |
| Conduit Entries | Two 1/2" BSPP |
| Also available with two 1/2" NPT, M20-1.5 | |
| Terminal Strip Contacts | 8 |
| Mounting Bracket | MB - 3.4: 30 x 80, 130 H : 20, 30 (Carbon steel) |
| Temperature Rating | -20℃ ~ 85℃ |
| Sensor: 2 Inductive Sensors (2 wire) | ||
| Model No. | PA22 |  |
| Operating Voltage | 10~30 VDC, <=150mA | |
| Operating Temp. | -25℃~+85℃ | |

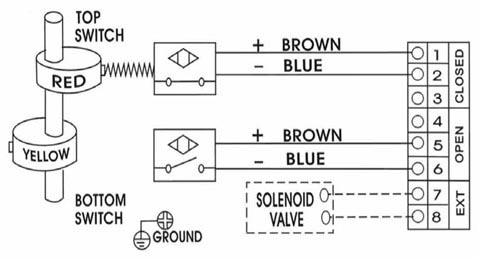

Wiring Diagram (2 DPDT)

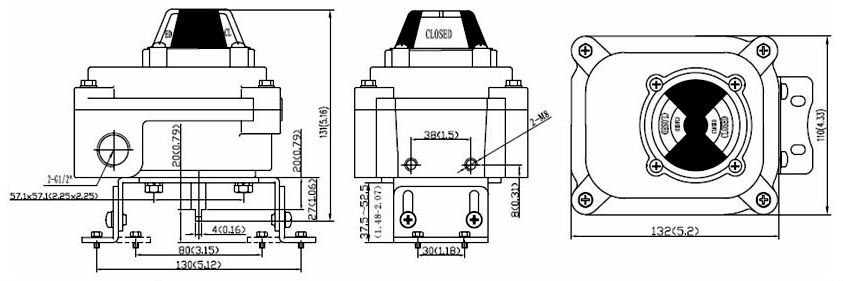

Drawing and Dimension
