Current Location: vtovalve >> Products >> Accessories >> Limit Switch >> APL310N Limit Switch Box (HKC Original)
APL310N Limit Switch Box (HKC Original)
|
(IP67,IP68) |

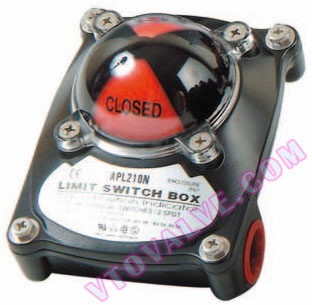

MODEL : APL - 2N
- Enclosure : Weatherproof IP67/NEMA4&4X (Standard ) IP68(Option)
- Solid and compact design
- Bolts on visual position indicator
(Re-adjustment available upon required direction)
- Dual cable entries : 2 x 1/2 NPT(Standard)
M20, PG13.5, PF1/2 , PT1/2 .(Option)
- Terminal Strips : 8 points(0.08-2. 5 )
- Captive cover bolts
- Easy mounting bracket
NAMUR standard stainless steel shaft and bracket.
|
|
(IP67,IP68) |

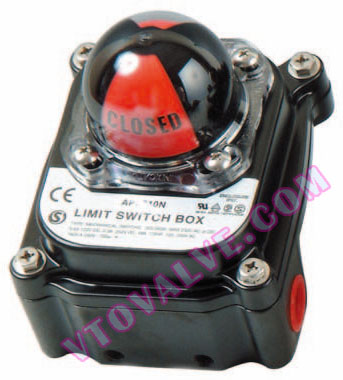

MODEL : APL - 3N
- Enclosure : Weatherproof IP67/NEMA4&4X (Standard ) IP68(Option)
- Solid and Flexible design & various options available
3~4 additional switches 8~16 points Terminal Strips
- Bolts on visual position indicator
- Dual cable entries : 2 x 1/2 NPT(Standard )
M20, PG13.5, PF1/2 , PT1/2 .(Option)
- Terminal Strips : 8 points(0.08-2. 5 )
- Captive cover bolts
- Easy mounting bracket
NAMUR standard stainless steel shaft and stainless steel or steel bracket.
|
|
(E EX d IIB T 6) |

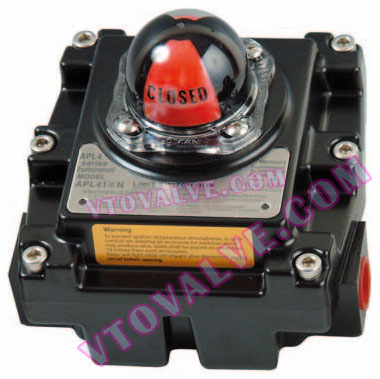

MODEL : APL - 4N
- Enclosure : Weatherproof IP67/NEMA4,4X,7,9 (Standard ) IP68(Option)
Explosionproof : E EX d IIB T6
- Solid and Durable design & various options available
3~4 additional switches
8~20 points Terminal Strips
various options switches
- Bolts on visual position indicator
- Cable entries : 2 x 3/4 NPT(Standard )
M20, M25, PF3/4 , PT3/4 4Cable entries(Option)
- Terminal Strips : 8 points(0.08-2. 5 )
- Captive cover bolts
- Easy mounting bracket
NAMUR standard stainless steel shaft and stainless steel or steel bracket.
|
|
(E EX d IIC T 6) |

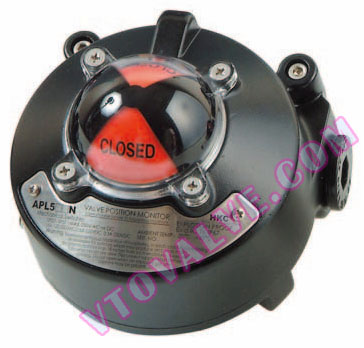

MODEL : APL - 5N
- Enclosure : Weatherproof IP67/NEMA4,4X,7,9 (Standard ) IP68(Option)
Explosionproof : E EX d IIC T6, E EX ia IIC T6, E EX d IIB T6
- Solid and compact design
- Shaft holder built in the cover(Dual shaft)
Easy to set the visual position indicator.
Unique design to put the visual indicator on the threaded joint type cover.
- Bolts on visual position indicator
- Dual Cable entries : 2 x 3/4 PF(Standard )
M20, M25, NPT3/4 , PT3/4 (Option)
- Terminal Strips : 8 points(0.08-2. 5 )
- Captive cover bolts & Spring loaded cover bolts
No worry to loose bolts while cover open
& Unique design to hold bolts inside cover
- Easy mounting bracket
NAMUR standard stainless steel shaft and stainless steel or steel bracket.
|

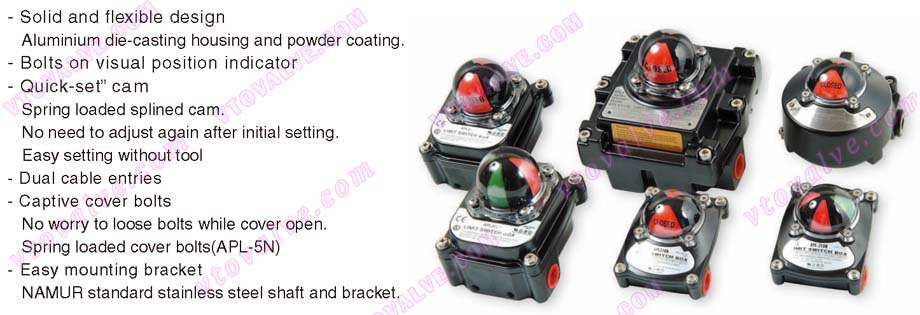

1. Features of HKC APL Limit Switch Box

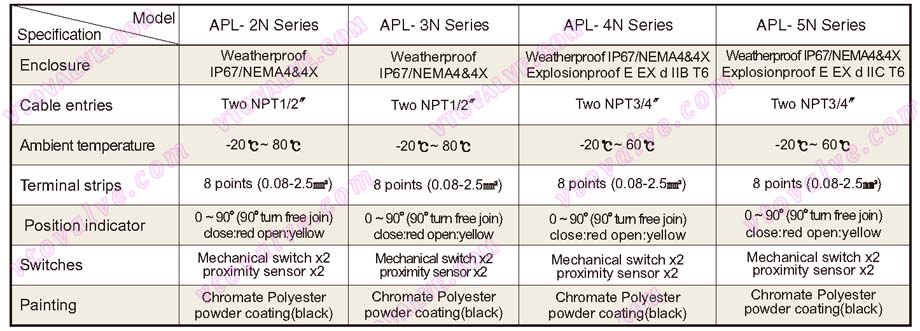

2. Standard Specification of HKC APL Limit Switch Box

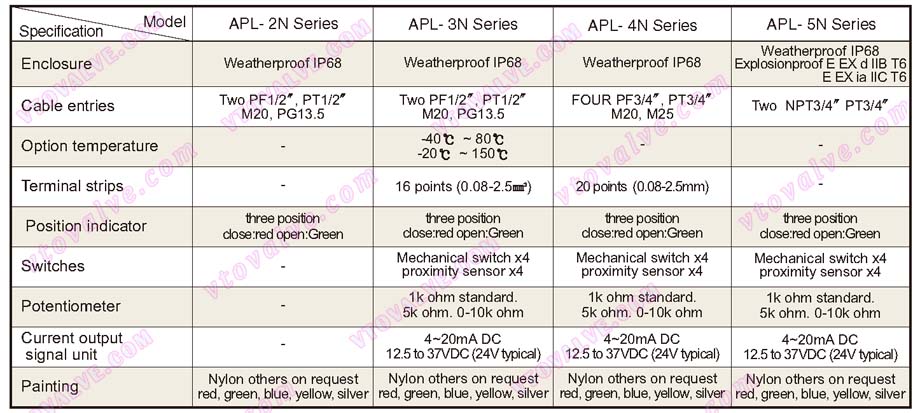

3. Option Specification of HKC APL Limit Switch Box

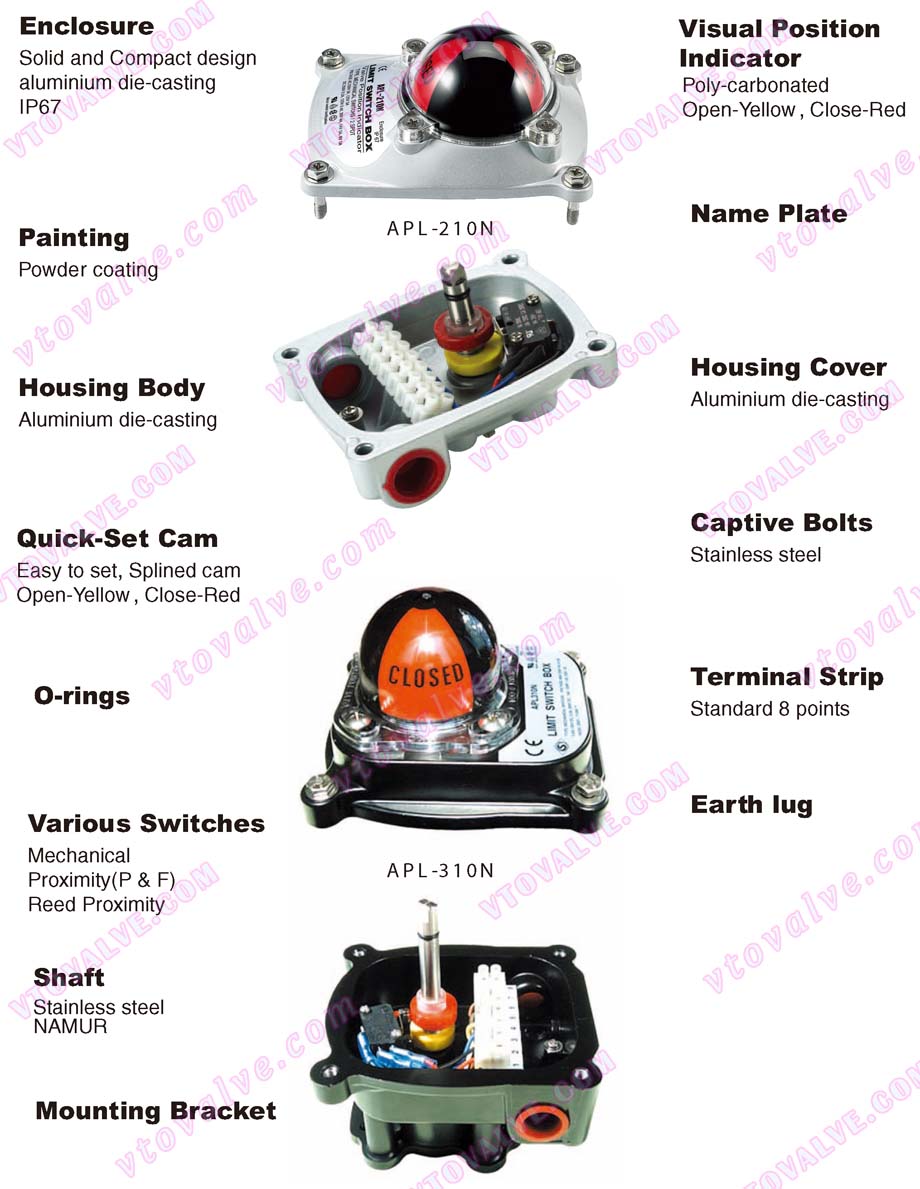

4. APL-2N & APL-3N Weatherproof Design

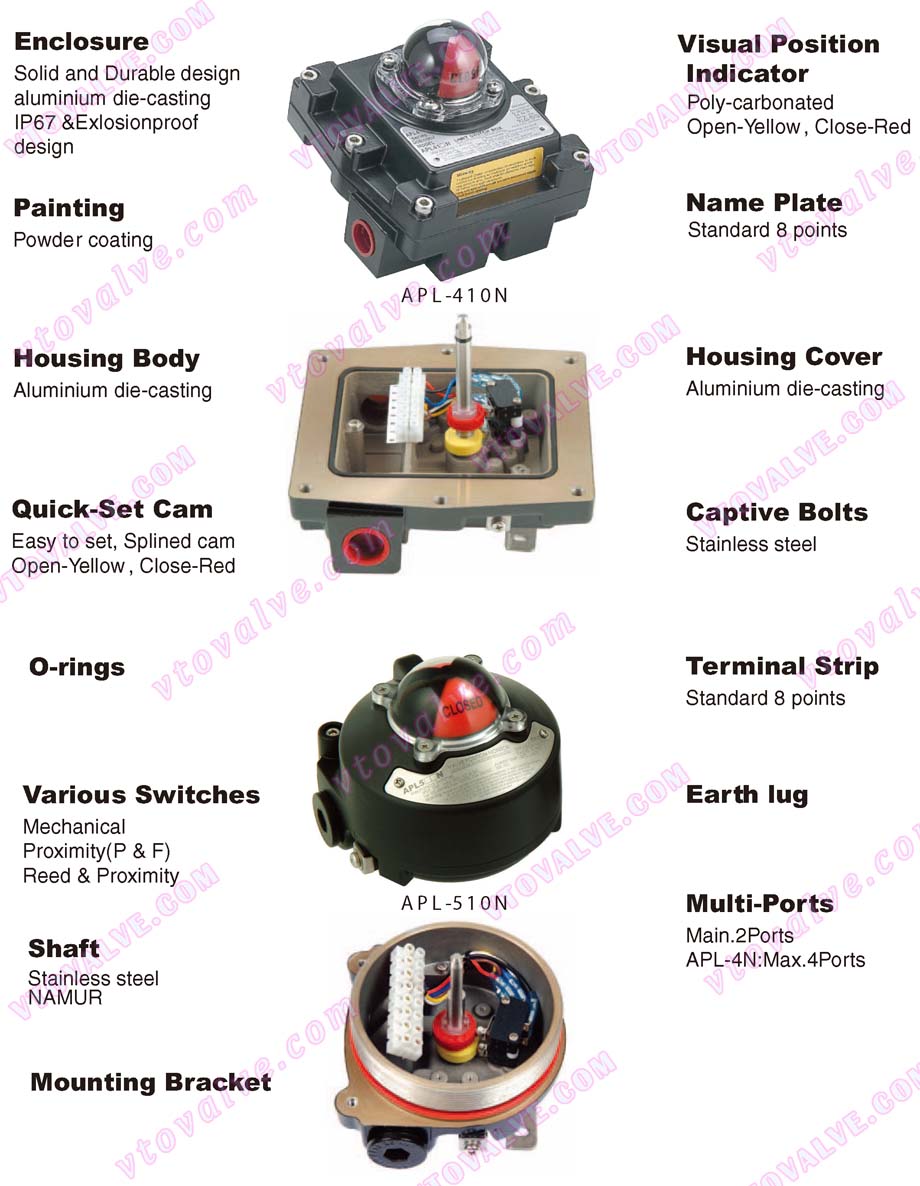

5. APL-4N & APL-5N Explosionproof Design

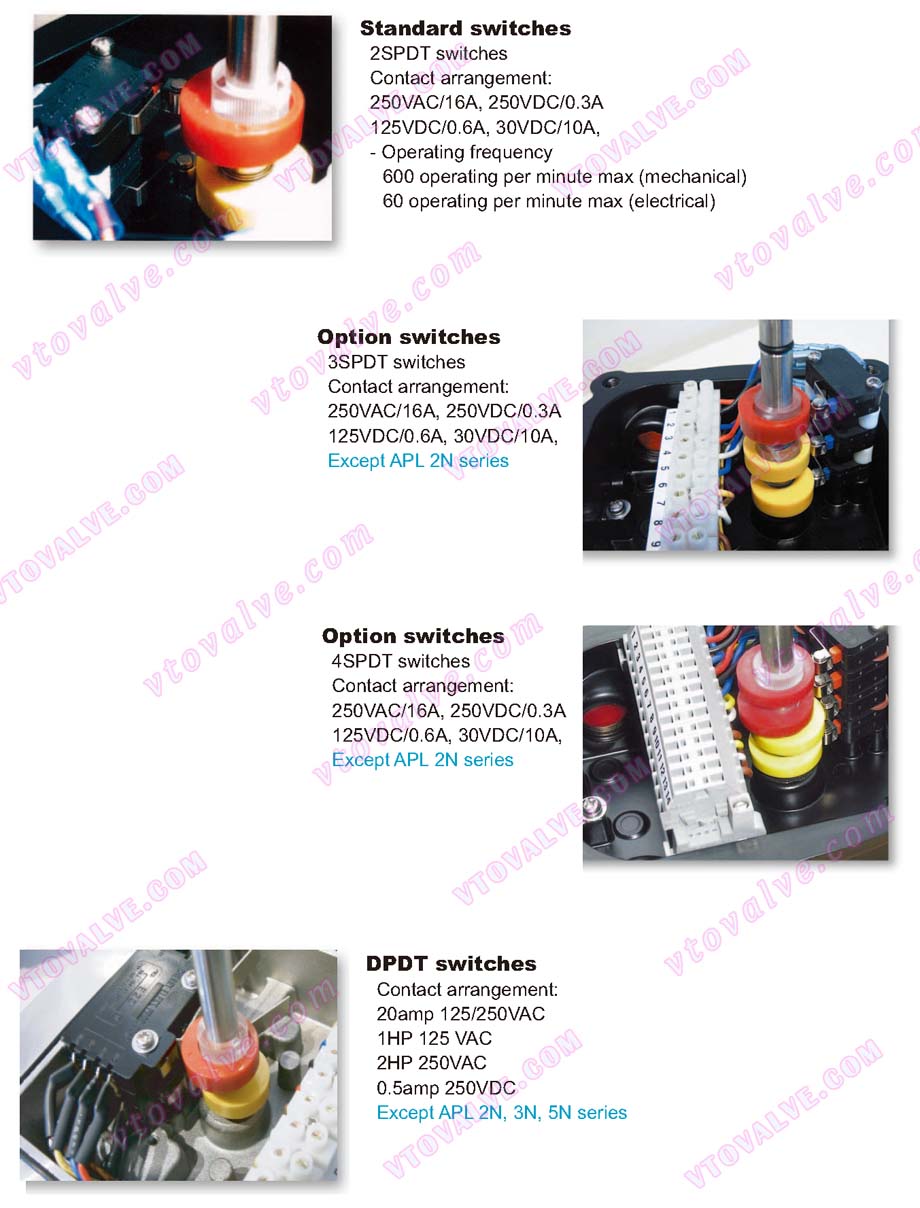

6. Mechanical Switch of HKC APL Limit Switch Box

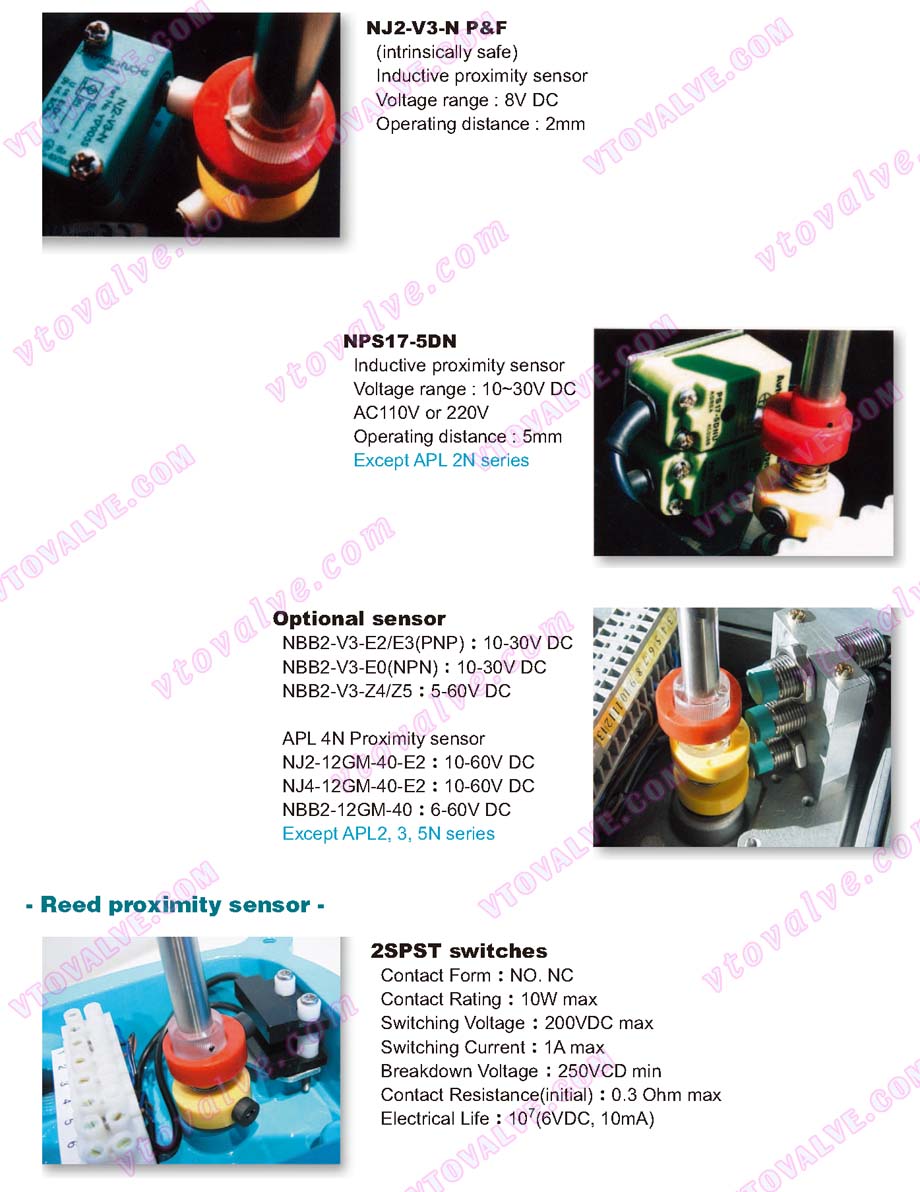

7. Proximity Switch of HKC APL Limit Switch Box

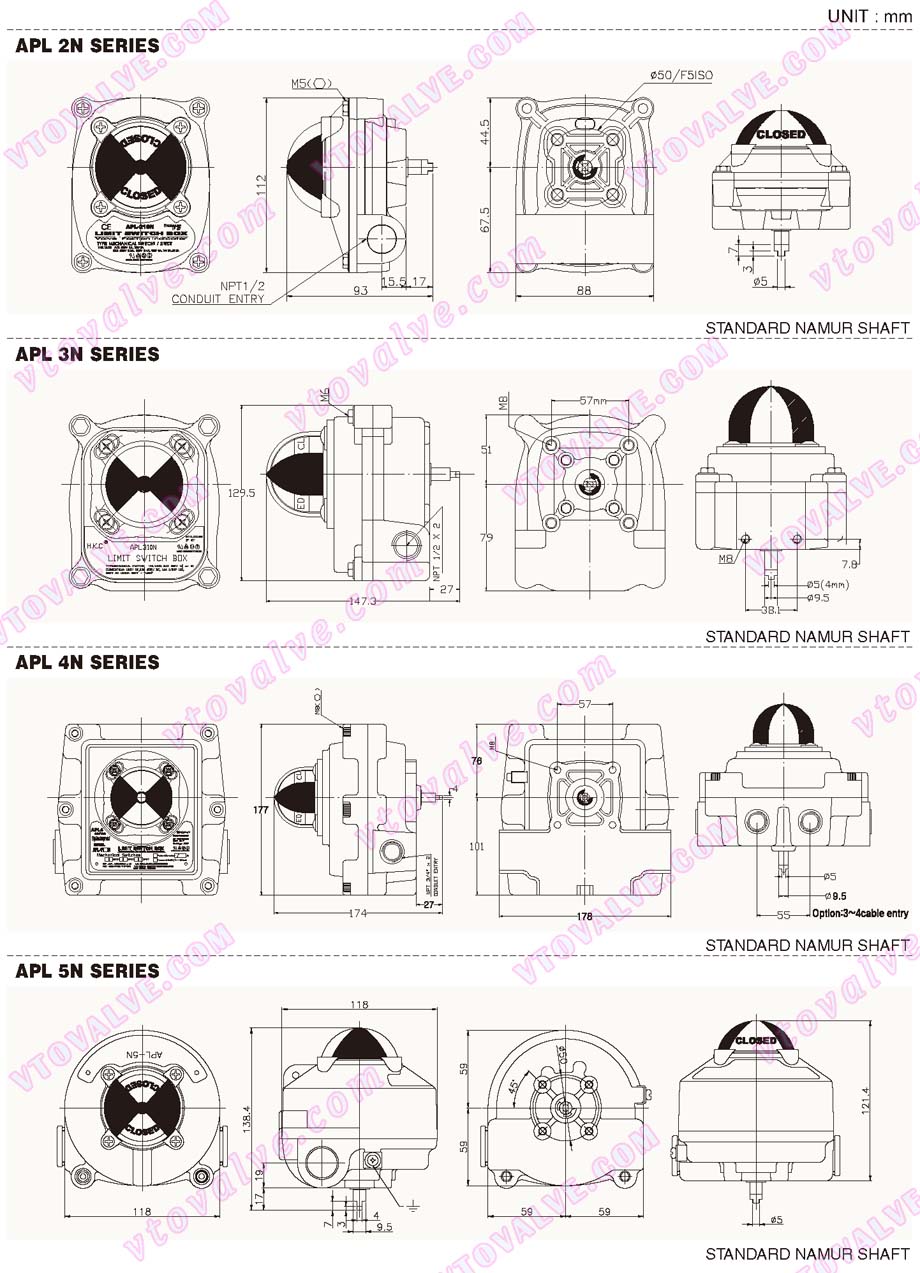

8. Dimensions of HKC APL Limit Switch Box (Unit: mm)

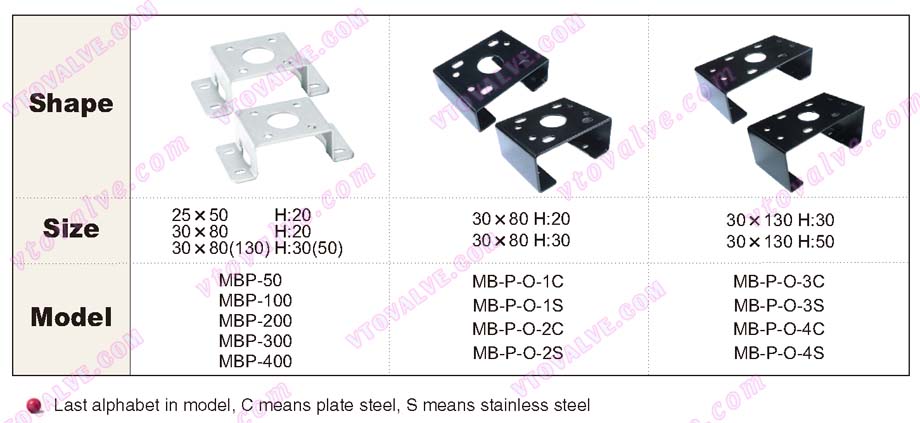

9. Bracket of HKC APL Limit Switch Box
10. Ordering Information of HKC APL Limit Switch Box
